Vision-Based TCP Calibration for Collaborative Robots Using Deep Learning

An intelligent vision-based calibration system developed at Fraunhofer IPK and TU Berlin that reduces industrial robot TCP calibration time by 87.5% while improving accuracy by 76% through deep learning-driven pose selection.

1. Project Overview

One-sentence summary: An intelligent vision-based calibration system that reduces industrial robot TCP calibration time by 87.5% while improving accuracy by 76% through deep learning-driven pose selection.

Institution: Fraunhofer Institute for Production Systems and Design Technology (IPK), TU Berlin

Duration: 2024-2025

2. Problem Statement

Traditional robot Tool Center Point (TCP) calibration requires 40+ calibration poses and takes ~80 minutes to complete. This is time-consuming in production environments, requires significant operator expertise, and is not optimized for data efficiency.

No existing work systematically analyzed which calibration poses actually contribute to accuracy. The assumption was “more data = better calibration.”

3. Methods and Tools Used

Hardware

Software Stack

Algorithms

• Kinematic calibration: Hand-eye calibration (Tsai-Lenz method)
• Optimization: Levenberg-Marquardt for pose refinement
• State estimation: RGB-D + kinematics + visual odometry fusion
• Pose selection: CNN-based quality scoring

4. System Architecture

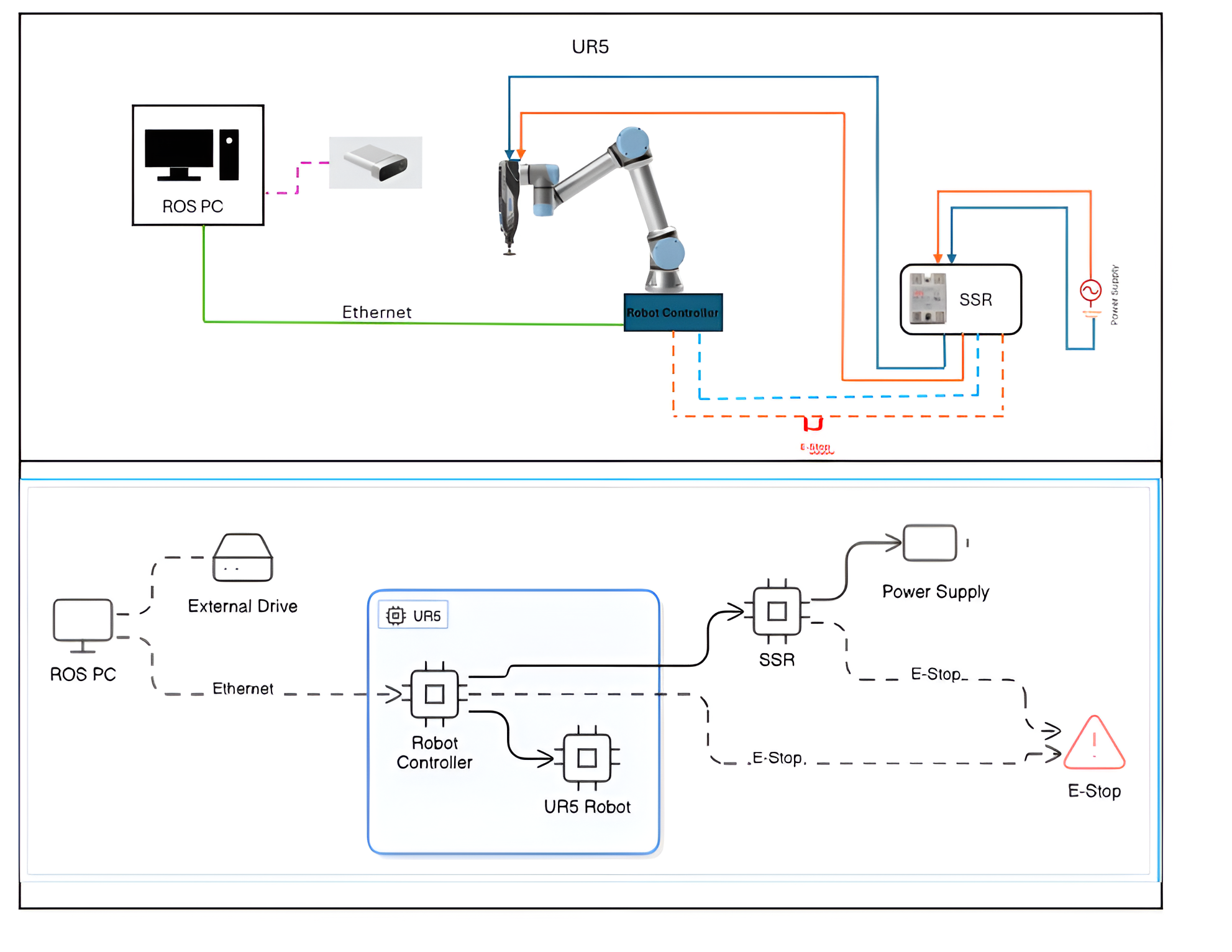

Hardware Setup

Azure Kinect RGB-D Camera
         ↓ (USB 3.0)
NVIDIA Jetson Orin NX
         ↓ (Ethernet)
     UR5e Robot Arm
         ↓
   ArUco Marker Board

Software Pipeline

1. RGB-D Image Acquisition (ROS2 node)
2. ArUco Marker Detection (OpenCV)
3. Pose Estimation (PnP algorithm)
4. CNN Quality Scoring (PyTorch)
5. Intelligent Pose Selection (top-5 poses)
6. Kinematic Calibration (hand-eye solver)
7. TCP Parameter Output

5. What I Implemented

Core Modules

thesis_ws/
├── src/
│   ├── camera_driver/
│   │   └── kinect_node.py
│   ├── pose_estimation/
│   │   ├── aruco_detector.py
│   │   └── pose_solver.py
│   ├── calibration/
│   │   ├── cnn_model.py
│   │   ├── pose_selector.py
│   │   ├── hand_eye_calib.py
│   │   └── optimizer.py
│   ├── robot_control/
│   │   └── ur5e_controller.py
│   └── evaluation/
│       ├── metrics.py
│       └── visualization.py

Key Contributions

• CNN training pipeline for pose quality prediction
• Hardware-in-the-Loop validation framework
• Real-time sensor fusion (RGB-D + kinematics + odometry)
• Automated calibration workflow with zero human intervention

6. How to Run

Terminal 1 — Launch camera driver

ros2 launch camera_driver kinect.launch.py

Terminal 2 — Launch robot controller

ros2 launch robot_control ur5e_bringup.launch.py

Terminal 3 — Run calibration system

ros2 launch calibration calibration_system.launch.py \
    --poses 5 \
    --model weights/resnet18_best.pth

Evaluate results

python3 evaluation/metrics.py \
    --data logs/calibration_results.csv \
    --ground-truth data/ground_truth.yaml

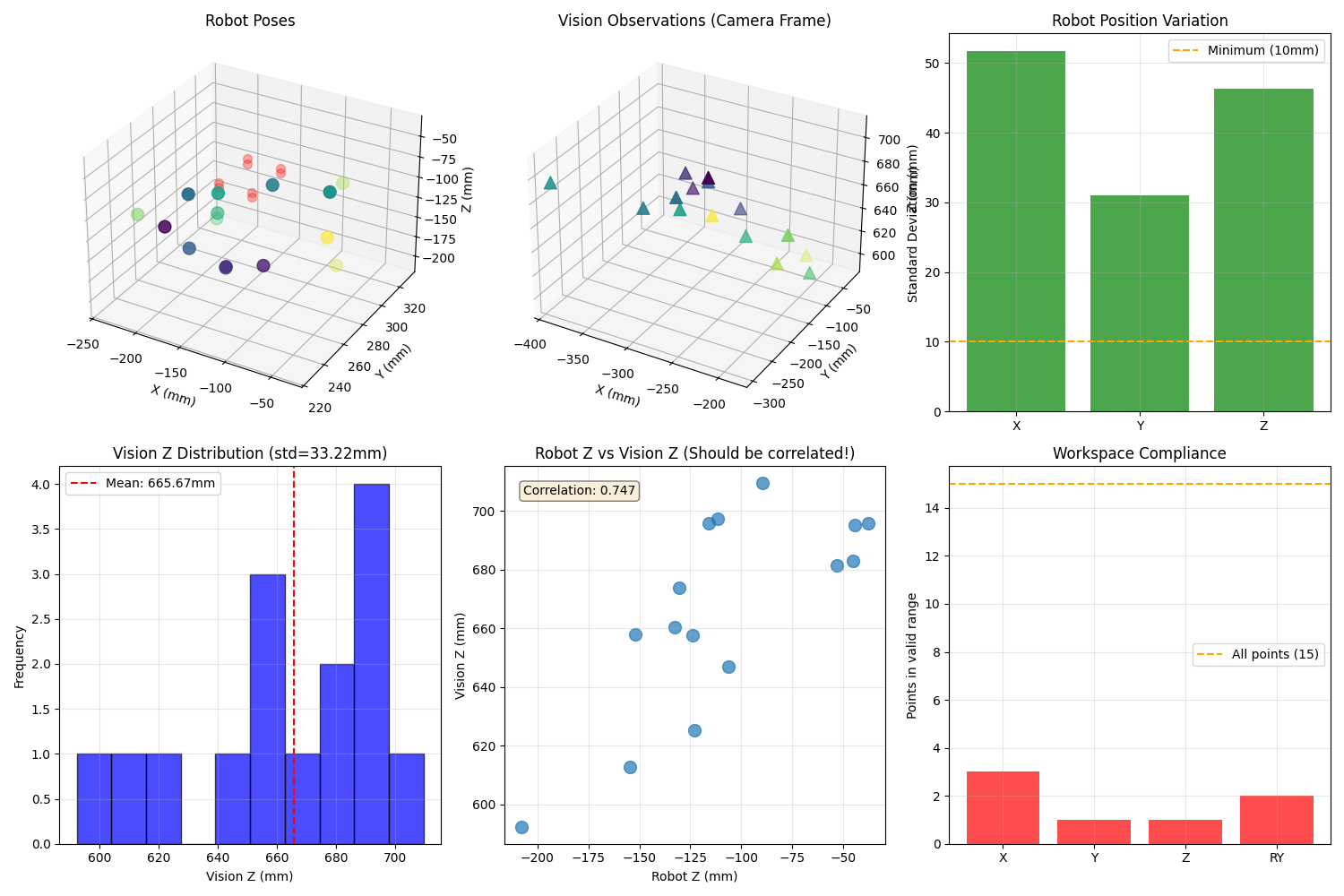

7. Results and Metrics

Key Findings

• 5 intelligently selected poses outperform 40 random poses
• Pose quality matters more than pose quantity
• CNN can predict calibration quality from RGB-D data alone
• System runs in real-time on embedded hardware (Jetson Orin NX)

8. Challenges and Solutions

Challenge 1 — Real-time performance on Jetson CNN inference was 250ms — too slow for closed-loop control requiring under 100ms. Solution: TensorRT optimized model + reduced input resolution → 45ms inference time.

Challenge 2 — Sensor synchronization RGB-D camera, robot encoders, and visual odometry had different update rates. Solution: ROS2 time-synchronized message filter with 50ms tolerance.

Challenge 3 — Marker detection under poor lighting ArUco detection failed in low-light or high-glare conditions. Solution: Adaptive histogram equalization + multi-scale detection → robustness improved from 78% to 96%.

Key insight: Pose diversity (spatial distribution) matters more than pose quantity. The CNN learned to penalize redundant poses and reward geometrically diverse ones.

9. Key Takeaway

Proving that intelligent data selection outperforms brute-force data collection in robotic calibration. This challenges the conventional “more data = better” paradigm and shows that asking the right question — which poses matter? — is more valuable than raw computational power.

This methodology transfers to other robotics applications requiring calibration, teaching-by-demonstration, or data-efficient learning.

10. Next Steps

• Test on other robot platforms (KUKA, ABB, Fanuc)
• Active learning: robot automatically selects next best pose
• Transfer learning: CNN pretrained on one robot generalizes to others
• Online recalibration: detect calibration drift and auto-correct
• Paper submitted to IEEE/RSJ IROS 2026 (under review)
